Cornell University Ergonomics Web

Ergonomic Intervention & Follow-up Study
of the
City of Ithaca
Department of Planning and Development



Introduction Workstations Results Discussion


Workstation 9

Workstation design Changes:
Installed a new keyboard tray
Increased the monitor height
Increased the desk height
Injury

Discomfort eliminated in:

Neck
Right Wrist
Right Leg

Posture
RULA Score:
Before changes: 4
After changes: 3		 1 or 2: Acceptable
3 or 4: Investigate further
4 or 5: Investigate further & change soon
7: Investigate & change immediately

Observations
Upper body is supported by the chair
Neck is in a neutral position
Feet are touching the floor
Ankles are not crossed
Wrists are in a neutral position

Comment

Overall, the employee feels that the changes made to her workstation have made a substantial difference in her physical comfort level. In particular, in the follow-up survey, the new articulating keyboard tray was rated as "very comfortable"* and the mouse was rated as "comfortable"*. Also, viewing images on the computer screen was rated as "comfortable"* because the employee no longer has to wear her glasses to see her computer screen.

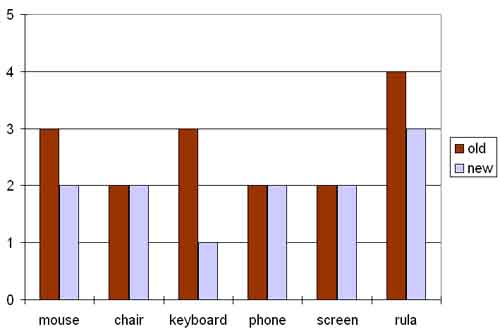

Data

For Comfort Scales (mouse, chair, keyboard, phone, screen)
5: Very Uncomfortable
4: Uncomfortable
3: Slightly Uncomfortable
2: Comfortable
1: Very Comfortable 		*For RULA:
1 or 2: Acceptable
3 or 4: Investigate further
4 or 5: Investigate further & change soon
7: Investigate & change immediately
Before/After

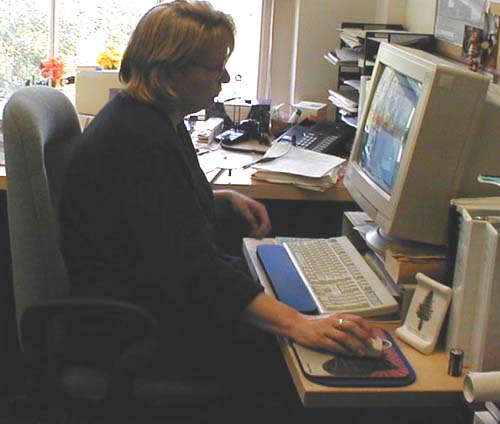

Before

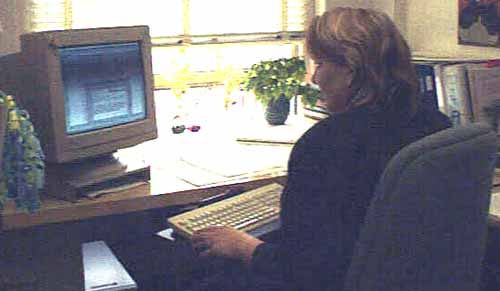

After
