DESIGN CONSIDERATIONS


External Consideration Design Outcome N/A

Site Planning

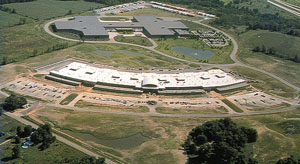

Site Selection -integration of the building with the site was a primary objective for the architects
Campus vs. High-Rise - "street" design of building to connect offices and manufacturing
Solar Access & Orientation -maximize solar access
Prevailing Winds - design site with reforestation to buffer winds & encourage windblown snow to fall at areas other than at the building
Adjacent Buildings -reforestation to visually screen adjacent homes
Disturbance of site throughout construction -evaluation of soil disturbance during planning & construction as well as construction techniques utilized
Construction Waste Management -recycled construction waste
Access/Egress & Circulation     X
Outdoor Lighting & Safety     X

Environmental Impact


Restoration & Preservation of Flora & Fauna -replanting of native trees, grasses and wildflowers, -maintain 50% of site as natural habitat

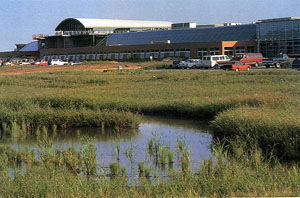

Groundwater control/ erosion control -site design that includes careful stormwater management, retention ponds, & nearby wetlands
Ecosystems (air, water, soil) -site design creates a restorative biological process, and results in better water quality

Transportation


Biking /Walking      X
Mass Transit     X
Shuttle /Bus     X
Commuter Rideshare     X
Parking - parking available

Noise & Vibration


Effect of surrounding noise & vibration on new buildings -site location away from surrounding noise
Amount of noise released into environment -reforestation provides acoustical privacy

Core & Envelope

Design Considerations N/A
Circulation
Stairwell Placement

Lighting, Heating & Cooling -optimization of daylighting provide passive solar heat, remainder is electrical
Wayfinding - public "street" design used to connect offices with manufacturing
Building Form /Shape -integration with the landscape, building is a curved daylit "street"
Energy Efficiency - 30% of heat generated through passive solar
Harmony w/Environment -integration with surrounding landscape
HVAC
Self-sufficient     X
Renewable Fuels -30% of heat provided by passive solar heat
Fossil Fuels - remainder of heat is electrical
Ventilation - fresh air chases run on both sides of street to provide fresh filtered air
Cooling System -centrifugal chiller that uses HFC 134a refrigerant
HVAC Intake & Exhaust     X
Personal Environment Modules

Glazing
Lightshelves

Daylighting Monitors -electronically controlled exterior blinds block undesirable glare



Occupancy Sensors -motion sensors installed where continuous lighting need only be provided when spaces are occupied



Superwindows -low-E argon filled glazing
South Facing Glass - orientation to maximize solar gain
Skylights & Clerestories - 8' x 8' skylight placed in each structural bay, -clerestories oriented for best possible lighting conditions
Courtyards & Atria - atria within "street"
Insulation / Energy Efficiency
High Insulation - R-60 value for roof, R-20 for walls
Low Emission -low emissive insulation utilized
Recyclable & Natural Materials     X
Earth Covered Building     X
Asbestos

Building Lifecycle/ Longevity
Adaptive Reuse     X
Monitoring Systems or Devices     X
Materials
Natural Materials - building made of steel- lowest embodied energy
Recyclable & Renewable     X
Local Materials -steel procured from a local source
Non-toxic/ Low-toxicity -MSDS sheets reviewed for all materials
Harmony w/Environment - integration with site, but industrial materials
Roofing
Storm Water Drainage -site design that includes careful stormwater management, retention ponds, & nearby wetlands
Roof Top Units     X
Solar Units - passive solar heat collected
Indoor Ecology Design Considerations N/A
Space Planning
Smaller spaces w/large group areas     X
Shared spaces     X
Telecommuters     X
Indoor Air Quality
Air Changes per hour -fresh air introduced 50,000CFM after being filtered



Smoking Policy - no smoking policy



Air Filtration -filters located at each intake remove any particles larger than 10microns in size



Natural Ventilation -fresh air introduced through filters
Building Materials -steel frame, low/non-toxic materials utilized
"Breathing Skin" -operable windows
Pesticide Use -not permitted
Indoor Flora - "street" includes extensive indoor flora
Lighting
Natural Daylighting - sun is primary source of daylighting, operable windows
Artificial Lighting - controlled with electronic sensors that dim the electric lighting during times of sufficient daylight
Circuiting & Switching -electronic sensors monitor lighting levels
Material / Product Content Design Considerations N/A
Furniture
Natural & Recycled -closed-loop "industrial ecology", -recyclability and recycling of materials is essential
Raw Materials - recycled products
Acquisition -acquisition process reviewed
Processing & Mfr. -materials & products that were produced with sustaining and healthful methodologies were sought out and specified
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins
Renewability - recycling program implemented, -selection of durable products
Walls & Partitions
Natural & Recycled -closed-loop "industrial ecology", - recyclability and recycling of materials is essential
Raw Materials - recycled products
Acquisition -acquisition process reviewed
Processing & Mfr. - materials & products that were produced with sustaining and healthful methodologies were sought out and specified
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins
Renewability - recycling program implemented, -selection of durable products

Fabrics


Natural & Recycled -closed-loop "industrial ecology", - recyclability and recycling of materials is essential
Raw Materials - recycled products
Acquisition -acquisition process reviewed
Processing & Mfr. - materials & products that were produced with sustaining and healthful methodologies were sought out and specified
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins
Renewability - recycling program implemented, -selection of durable products

Flooring & Carpeting


Natural & Recycled -closed-loop "industrial ecology", -recyclability and recycling of materials is essential
Raw Materials - recycled products
Acquisition -acquisition process reviewed
Processing & Mfr. - materials & products that were produced with sustaining and healthful methodologies were sought out and specified
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins
Renewability - carpet laid down in tiles and secured with velcro

Appliances


Natural & Recycled -closed-loop "industrial ecology", - recyclability and recycling of materials is essential
Raw Materials -recycled products utilized
Acquisition -acquisition process reviewed
Processing & Mfr. - materials & products that were produced with sustaining and healthful methodologies were sought out and specified
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins
Renewability - recycling program implemented, -selection of durable products

Finishes & Laminates


Natural & Recycled -closed-loop "industrial ecology", - recyclability and recycling of materials is essential
Raw Materials -natural materials
Acquisition -acquisition process reviewed
Processing & Mfr. - manufacturing practices evaluated, -dry-fall paint used on underside of structure
Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified
No / Low Emissions - MSDS sheets reviewed for toxins, flooring finish required only one application and was controlled by spot ventilation before occupancy
Renewability - recycling program implemented, -selection of durable products

Products


Natural or Recycled -closed-loop "industrial ecology", - recyclability and recycling of materials is essential



Product Distribution - local or regional materials & products that were produced with sustaining and healthful methodologies were sought out and specified



No / Low Emissions - toxicity of materials carefully reviewed to protect IAQ



Disposal & Renewability - recycling program
